Solder Seal Heat Shrink Butt Connectors – White (0.24-0.34mm2)
$14.95
Solder Seal Heat Shrink Butt Connectors – White (0.24-0.34mm2)
Supplied in bags of 100 connectors
The transparent sleeve of the wire connectors provides a visual inspection of the completed join.
Polyolefin tubing provides insulation and improves pullout strength. Waterproof and perfectly sealed they can protect electrical connections
The butt connectors are easy to use, simply put the stripped wires into the solder wire connector and apply heat to finish the connection.
Widely used for RV repairs and upgrades, marine, home wiring, DIY electrical repairs and etc
In stock (can be backordered)
For delivery outside of main centres, please contact us for a quote.
- Item Type: Heat Shrink Tube
- Material: Nylon, tin
- Uses: Industrial production, electrical circuits

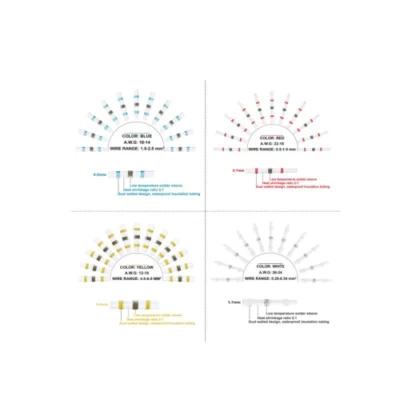

- SST-S41(yellow): 4-6mm²
- SST-S31(blue): 1.5-2.5mm²SST-S21(red): 0.5-1.5mm²
- SST-S11(white): 0.25-0.34mm²
- Stripping Length: Approx. 10mm / 0.4in
- Working Temperature: -55℃-125℃
- Start Shrinking Temperature: 80℃
- The Temperature at Which the Solder Begins to Dissolve: 138℃
- Complete Melting Temperature of Solder: 160℃
- Shrinking Temperature: >160℃
- Dielectric Strength: 1KW
- Protection Level: IP67
Additional information
| Weight | .2 kg |
|---|---|
| Dimensions | 10 × 5 × 3 cm |
