Busbar 150 A 4 Stud with Cover

  • Insulation cover
  • Tin-plated copper bus allowing large current of 150A
  • Stainless steel screws and studs provide good anti-corrosion protection

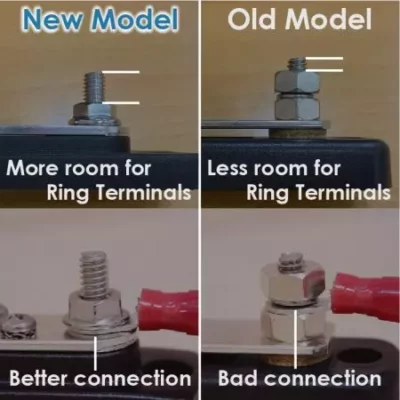

  • Upgraded design with Serrated Flange Nuts encourages correct installation of ring terminals and an improved electrical connection
  • Rounded Busbar ends allow for end connection to be at any angle

$46.51

In stock (can be backordered)

  • Max Current 150A
  • Max Voltage 48VDC
  • Terminal Diameter 1/4 inch / 6.35 mm
  • Terminal Material Stainless Steel
  • Recommeded Torque 7 Nm
  • Busbar material Tin plated Copper
  • Base Material – ABS
  • Cover material –  Clear Polycarbonate
  • Weight – 200g
  • Dimensions 33mm H x 149mm L x 31.8mm W
  • Rounded bus edge for more flexible wiring
  • Single flanged nuts



  • Interrupting Capacity (AIC) | 3,000A @ DC 48V
  • Voltage Rating | DC 48V Max
  • Current Rating | DC 25 – 150A
  • Terminal Studs | 1/4” – 28
